3DM-CX5-AHRS

• Bias tracking, error estimation, threshold flags, and
adaptive noise modeling allow for fine tuning to
conditions in each application
• Accelerometer noise as low as 20 ug/√Hz
• Smallest and lightest industrial AHRS with Adaptive
Kalman Filter available
• SensorConnect enables simple device configuration, live
data monitoring, and recording
• The MSCL API allows easy integration with C++, Python,
.NET, C#, Visual Basic, LabVIEW and MATLAB
environments
• MIP open byte level communication protocol
• Automatic magnetometer calibration and anomaly
rejection eliminates the need for field calibration
• Automatically compensates for vehicle noise and
vibration

Downloads

Datasheet

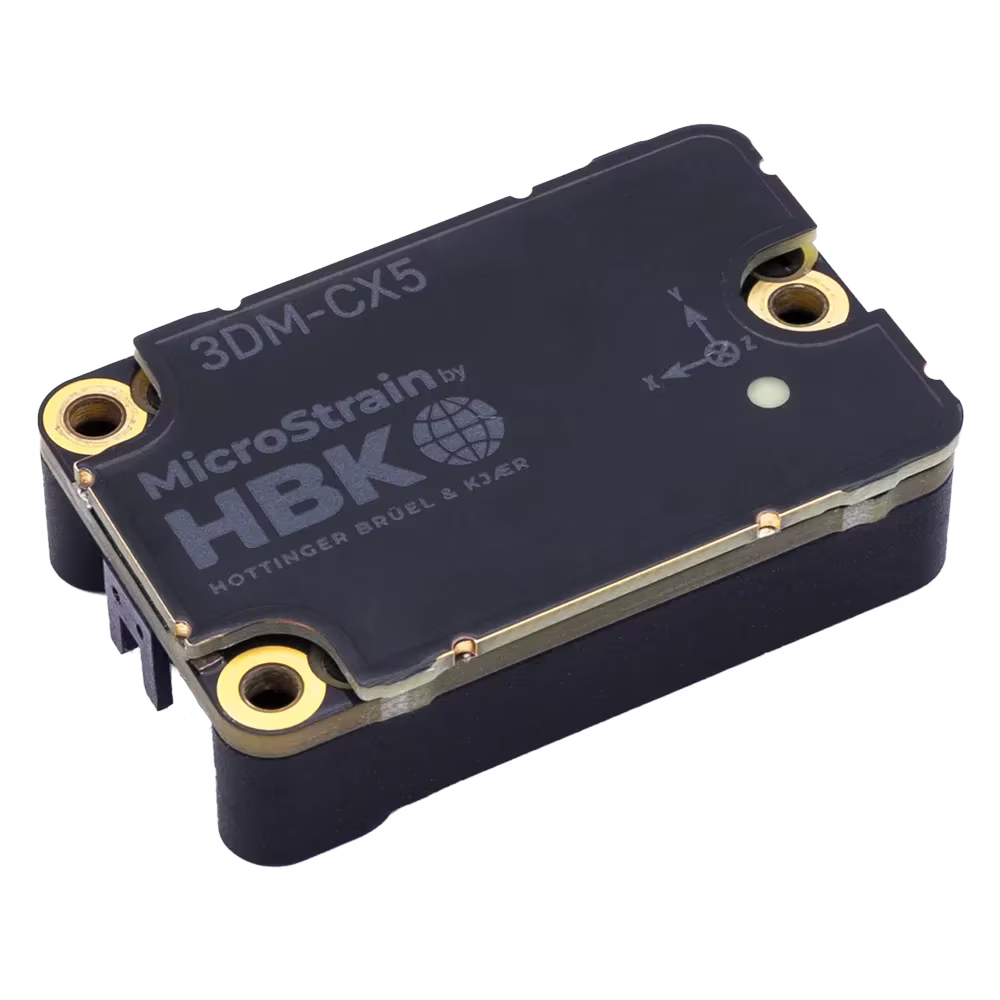

The MicroStrain 3DM-CX5 family of high-performance, industrial-grade, board-level inertial sensors provides a wide range of triaxial inertial measurements, computed attitude, and navigation solutions.
In all models, the Inertial Measurement Unit (IMU) includes direct measurement of acceleration and angular rate, and is fully temperature-compensated and calibrated over the operating temperature. The use of Micro-Electro-Mechanical

System (MEMS) technology allows for highly accurate, small, lightweight devices.
SensorConnect software is a user friendly program for device configuration. MIP Monitor (MicroStrain Inertial Protocol) can also be used. Both packages provide for device configuration, live data monitoring, and recording.

Alternatively, the MIP Data Communications Protocol is available for development of custom interfaces and easy OEM integration.
The sensor operates independent of computer platform, operating system, or coding language.

PRODUCT HIGHLIGHTS

Triaxal accelerometer, gyroscope, and temperature sensors achieve the optimal combination of
measurement qualities
Dual on-board processors run a new Auto-Adaptive Extended Kalman Filter (EKF) for outstanding dynamic
roll, pitch and yaw performance

3DM-CX5-AHRS
Specification	Value
Performance Grade	High Performance Grade
Features	Accelerometer, Gyroscope, Magnetometer
Random Walk	Accel: 20 µg/√Hz, Gyro: 0.3 °/√hr
Bias Instability (Gyroscope)	8 °/hr
Bias Instability (Accelerometer)	40 µg
Hysteresis	Accel bias: 4.8 mg, Accel gain: 300 PPM, Gyro bias: 0.12 °/s, Gyro gain: 300 PPM
Communication Port Type	Samtec FTSH series
Communication Interface	TTL serial, USB
Update Rate	IMU: 1000 Hz, EKF: 500 Hz
Inputs/Outputs	3×GPIO
Weight	8 g
Size	38 mm × 24 mm × 9.7 mm
Power Consumption	0.5 W
Input Voltage	3.2 V to 5.2 V
Minimum Operating Temperature	−40 °C
Maximum Operating Temperature	85 °C
MTBF	400 094 h
Sensing Range (Accelerometer)	8 g, 2 g, 20 g
Sensing Range (Gyroscope)	300 °/s, 900 °/s, 75 °/s, 500 °/s
Sensing Range (Magnetometer)	8 Gauss
Sensing Range (Pressure)	1260 mbar
Accuracy	Roll/Pitch (static): 0.25 °, Heading (static): 0.8 °
Ingress Protection Rating	Not Rated
Housing Material	Aluminum
Software	MSCL, ROS, SensorConnect
Mounting Style	Embeddable, Screw Down, Precision Alignment
