• Fully calibrated, temperature-compensated, and
mathematically-aligned to an orthogonal coordinate
system for highly accurate outputs
• High-performance, low-drift gyros with low noise density
and vibrational rectification error
• Accelerometer noise as low as 20 ug/√Hz
EASE OF USE
• SensorConnect enables simple device configuration, live
data monitoring, and recording
• Optional hardware development kit available
• The MSCL API allows easy integration with C++, Python,
.NET, C#, Visual Basic, LabVIEW and MATLAB
environments
• MIP open byte level communication protocol
• Automatic magnetometer calibration and anomaly
rejection eliminates the need for field calibration
• Automatically compensates for vehicle noise and
vibration

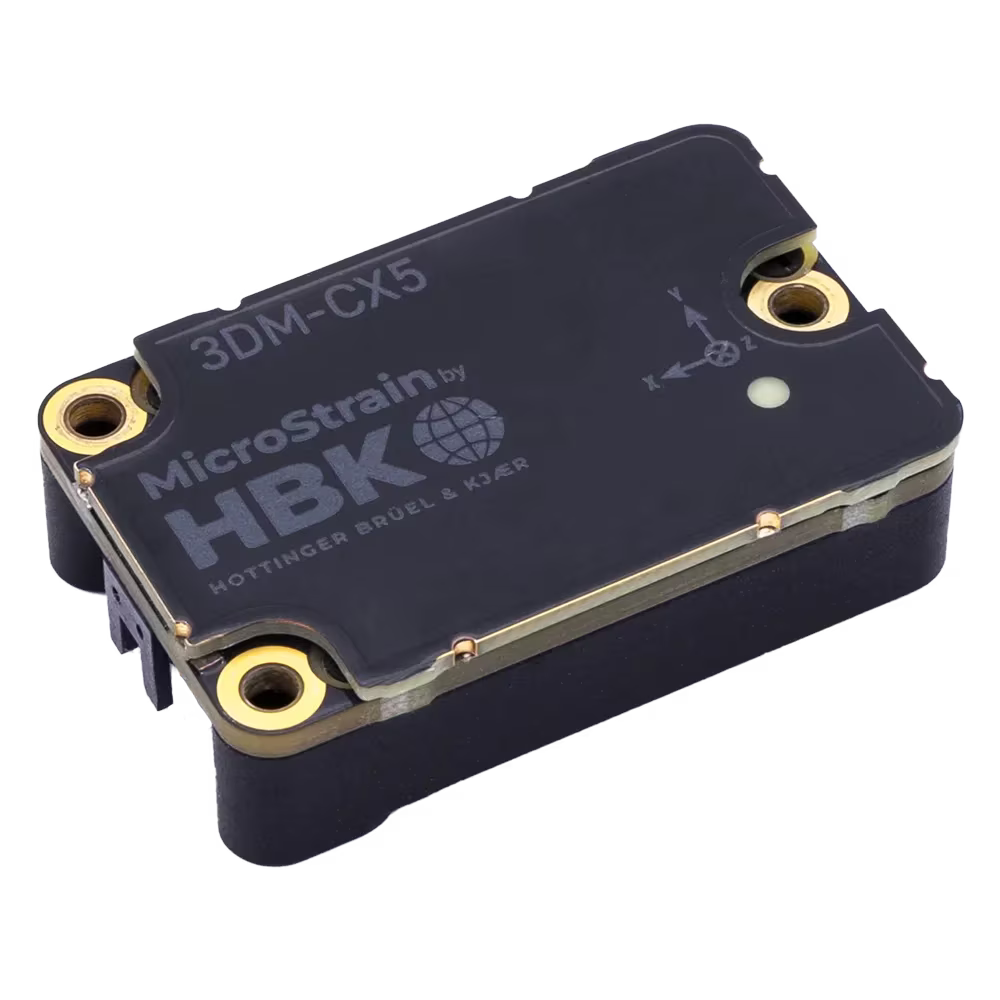

The MicroStrain 3DM-CX5 family of high-performance, industrial-grade, board-level inertial sensors
provides a wide range of triaxial inertial measurements, computed attitude, and navigation solutions.
The 3DM-CX5-GNSS/INS all-in-one navigation solution features a high-performance, integrated multi-constellation
GNSS receiver utilizing the GPS, GLONASS, BeiDou, and Galileo satellite constellations.
Sensor measurements are fully calibrated, temperature-compensated, and mathematically aligned to an orthogonal
coordinate system for highly accurate outputs.
The auto-adaptive estimation filter algorithm produces highly accurate computed outputs under dynamic conditions.
Compensation options include automatic compensation for magnetic anomalies, gyro and accelerometer noise, and noise effects.
The computed outputs include pitch, roll, yaw, heading, position, velocity, and GNSS outputs — making it a complete
GNSS/INS (GNSS-Aided Inertial Navigation System) solution. Micro-Electro-Mechanical Systems (MEMS) technology
provides a highly accurate, small, lightweight device.
The CX product line includes all the same features as the GX series in a cost-effective, system-integrator-friendly package
designed for volume production.
| Parameter | Value |
|---|---|
| Performance Grade | High Performance Grade |
| Features | Accelerometer, Gyroscope, Magnetometer |
| Random Walk | Accel: 20 µg/√Hz, Gyro: 0.3 °/√hr |
| Bias Instability (Gyroscope) | 8 °/hr |
| Bias Instability (Accelerometer) | 40 µg |
| Hysteresis | Accel bias 4.8 mg, Accel gain 300 PPM, Gyro bias 0.12 °/s, Gyro gain 300 PPM |
| Communication Port Type | Samtec FTSH series |
| Communication Interface | TTL serial, USB |
| Update Rate | IMU 1000 Hz, EKF 500 Hz |
| Inputs / Outputs | 3 × GPIO |
| Weight | 8 g |
| Size | 38 mm × 24 mm × 9.7 mm |
| Power Consumption | 0.5 W |
| Input Voltage | 3.2 V to 5.2 V |
| Operating Temperature | –40 °C to +85 °C |
| MTBF | 400 094 h |
| GNSS Constellations | GPS / QZSS, GLONASS, Galileo, BeiDou |
| GNSS Frequency Bands | L1C/A, L10F, E1B/C, B1 |
| Sensing Range (Accelerometer) | ±2 g |
| Sensing Range (Gyroscope) | ±75 °/s |
| Sensing Range (Magnetometer) | ±8 Gauss |
| Sensing Range (Pressure) | 1260 mbar |
| Accuracy | Roll/Pitch (static) 0.25°, Heading (static) 0.8°, Position (static) 2 m horizontal, 5 m vertical |
| Ingress Protection | Not Rated |
| Housing Material | Aluminum |
| Software | MSCL, ROS, SensorConnect |
| Mounting Style | Embeddable, Screw Down, Precision Alignment |
