• 25 µg/√Hz (8g option)
• 80 µg/√Hz (20g option)
• Super-stable Gyro
• 8 dph in-run bias (-40 to +85°C)
Offset temperature hysteresis 0.05°/s
ARW 0.3°/√hr
• Adjustable sampling rates up to 1000Hz
• Forward compatible MIP Protocol optimizes bandwidth
• Configurable IMU outputs
• SensorConnect software for configuration, control, display, and logging

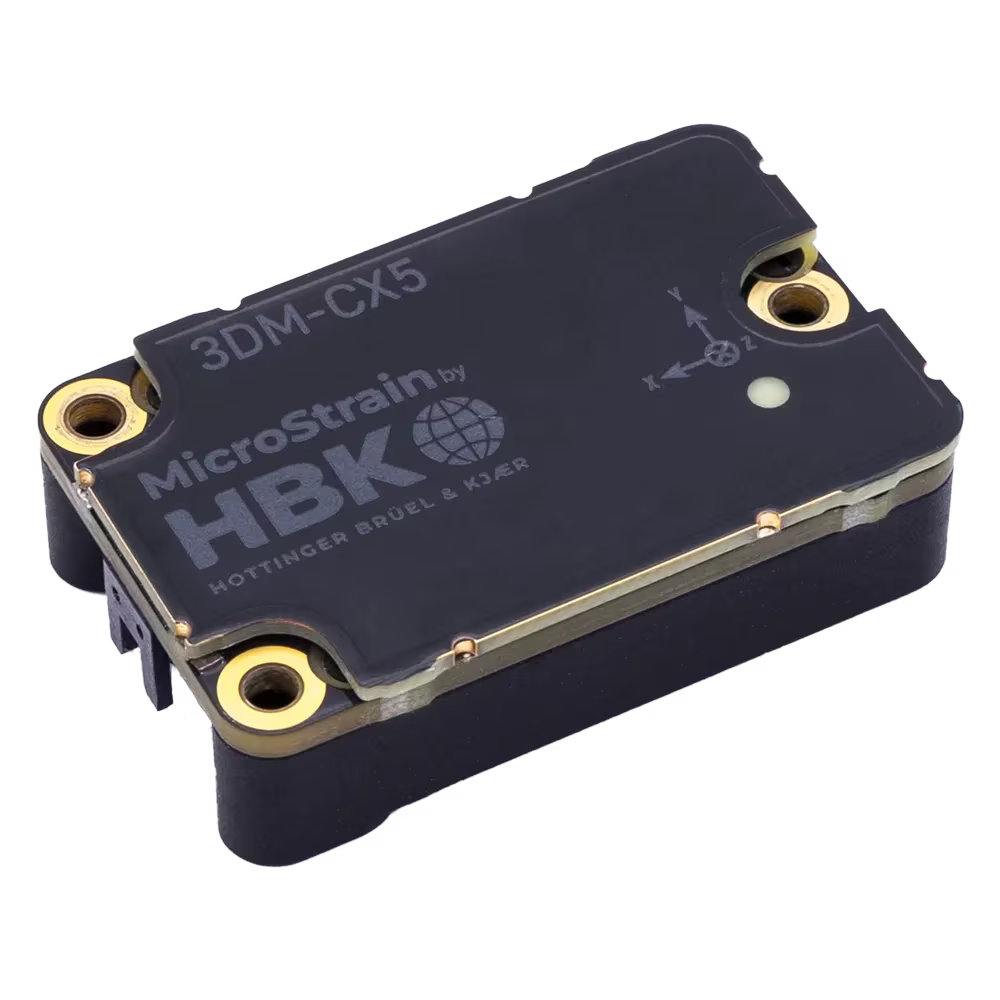

The MicroStrain 3DM-CX5 family of high-performance, industrial-grade, board-level inertial sensors provides a wide
range of triaxial inertial measurements, computed attitude, and navigation solutions.
In all models, the Inertial Measurement Unit (IMU) includes direct measurement of acceleration and angular rate,
and is fully temperature-compensated and calibrated over the operating temperature range.
The use of Micro-Electro-Mechanical System (MEMS) technology allows for highly accurate, small, and lightweight devices.
SensorConnect software is a user-friendly program for device configuration. MIP Monitor (MicroStrain Inertial Protocol)
can also be used. Both packages provide configuration, live data monitoring, and recording.
Alternatively, the MIP Data Communications Protocol is available for custom interface development and easy OEM integration.
The sensor operates independent of computer platform, operating system, or coding language.
| Parameter | Details |
|---|---|
| Integrated Sensors | Triaxial accelerometer, triaxial gyroscope, and temperature sensors |
| Data Outputs | Inertial Measurement Unit (IMU) outputs: acceleration, angular rate, Delta-theta, Delta-velocity |
| Parameter | Details |
|---|---|
| Communication | TTL serial (3.0 V dc, 9,600 bps to 921,600 bps, default 115,200) |
| Power Source | +3.2 to +5.2 V dc |
| Power Consumption | 300 mW (typical) |
| Operating Temperature | –40 °C to +85 °C |
| Mechanical Shock Limit | 500 g / 1 ms absolute maximum survivability * |
| MTBF | 400,094 hours (Telcordia method GM/35C) |
| Parameter | Details |
|---|---|
| Connectors | Data/power: FTSH Series Connectivity kit: Micro-D9 |
| Software | SensorConnect and MIP Monitor software included; Windows XP/Vista/7/8/10 compatible |
| Data Communications Protocol (DCP) | Protocol compatibility across GX3, GX4, RQ1, GQ4, GX5, CX5, and CV5 product families |
| Software Development Kit (SDK) | MicroStrain Communication Library (MSCL) open source license includes full documentation and sample code |
| Hardware Development Kit | Option purchased separately |
| Parameter | Accelerometer | Gyroscope |
|---|---|---|
| Measurement Range | ±8 g (standard), ±2 g, ±4 g, ±20 g, ±40 g (optional) | ±300°/s (standard), ±75°, ±150°, ±900°/s (optional) |
| Non-linearity | ±0.02% fs | ±0.02% fs |
| Resolution | 0.02 mg (±8 g) | 0.003°/s (300°/s) |
| Bias Instability | ±0.04 mg | 8 °/hr |
| Initial Bias Error | ±0.002 g | ±0.04 °/s |
| Scale Factor Stability | ±0.03% | ±0.05% |
| Noise Density | 20 µg/√Hz (2 g) | 0.005°/s/√Hz (300°/s) |
| Alignment Error | ±0.05° | ±0.05° |
| Bandwidth | 225 Hz (max) | 250 Hz (max) |
| Offset Error over Temperature | 0.06% (typ) | 0.04% (typ) |
| Gain Error over Temperature | 0.03% (typ) | 0.03% (typ) |
| Scale Factor Non-linearity (25 °C) | 0.02% (typ), 0.06% (max) | 0.02% (typ), 0.06% (max) |
| Vibration Induced Noise | – | 0.072°/s RMS/g RMS |
| Vibration Rectification Error (VE) | 0.03% | 0.001°/s²/g² RMS |
| Sampling Rate | 1 kHz | 4 kHz |
| IMU Filtering | Digital sigma-delta wide-band anti-aliasing filter to digital averaging filter (user adjustable) scaled into physical units | |
| IMU Data Output Rate | 1 Hz to 1000 Hz | |
| Parameter | Details |
|---|---|
| Dimensions | 38 mm × 24 mm × 9.7 mm |
| Weight | 8 grams |
| Enclosure Material | Aluminum |
| Regulatory Compliance | CE, REACH, RoHS |
* Prolonged exposure to >2× full scale range can result in permanent damage. See manual for details.
