• Up to 1 cm + 1 ppm positional accuracy with RTK
• Multi-frequency GNSS receivers provide 1.2m single point L1/L2 position accuracy
• Multi-constellation receivers with 184 tracking channels each allow for rapid signal
acquisition and robust signal tracking in challenging GNSS environments
• Dual GNSS antenna heading with 0.2° heading accuracy that is immune to magnetic disturbances
• Tactical grade IMU with <2°/hr bias instability provides exceptional position accuracy during GNSS outages
• 0.05° pitch/roll accuracy
• Accepts standard RTCM real-time kinematic (RTK) corrections
• Adjustable sampling rates up to 1KHz
• 34 state auto-adaptive EKF
• Independently configurable IMU, GNSS, EKF outputs
• Forward compatible MIP Protocol optimizes bandwidth
• SensorConnect software for configuration, control, display, and logging
• MSCL open source API for easy integration

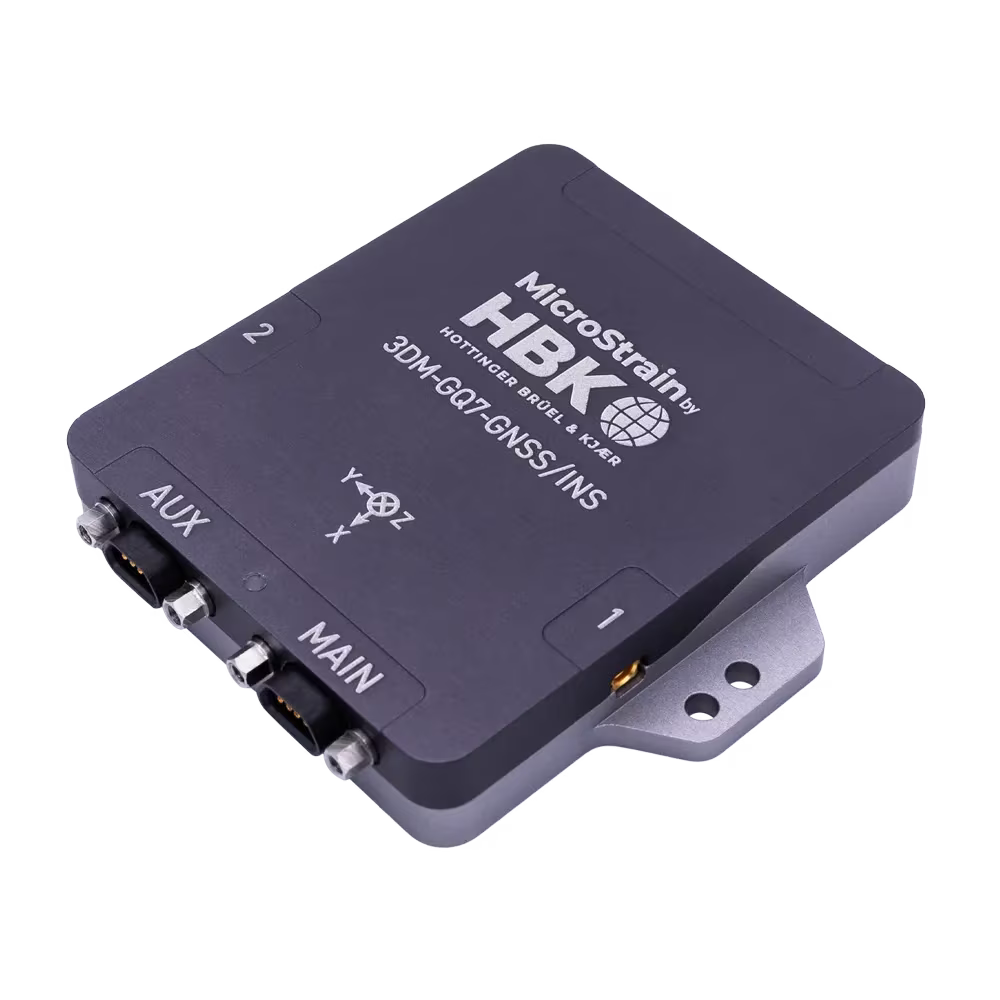

The MicroStrain 3DM-GQ7-GNSS/INS is a complete RTK enabled navigation solution featuring centimeter-level position accuracy.
The system includes dual multiband GNSS receivers, low-noise and low-drift MEMS inertial sensors, and a robust Adaptive Extended Kalman Filter (EKF).
MicroStrain sensors have set the standard for inertial sensor performance for over 20 years.
The 3DM-GQ7-GNSS/INS continues to build upon that legacy and includes a host of new features that ensure optimum performance in even the most demanding applications.
The MicroStrain 3DM-GQ7-GNSS/INS is an all-in-one navigation solution featuring centimeter-level position accuracy. It is our first dual-antenna, RTK enabled INS designed for outstanding performance, even in unpredictable conditions. It is equipped with dual multiband GNSS receivers, low noise and low drift MEMS inertial sensors, and a robust adaptive Kalman filter.
When paired with our 3DM-RTK Modem and SensorCloud RTK corrections service, the 3DM-GQ7-GNSS/INS is the best single-vendor RTK navigation solution available.
| Specification | Value |
|---|---|
| Performance Grade | Tactical Grade |
| Features | Accelerometer, Gyroscope, Magnetometer |
| Random Walk | Accel: 20 µg/√Hz, Gyro: 0.15 °/√hr |
| Bias Instability (Gyroscope) | 1.5 °/hr |
| Bias Instability (Accelerometer) | 5 μg |
| Hysteresis | Accel bias: 0.4 mg, Accel gain: 600 PPM, Gyro bias: 0.3 °/s, Gyro gain: 1000 PPM |
| Communication Port Type | 2 × Micro D9 |
| Communication Interface | RS-232, USB |
| Update Rate | IMU: 1000 Hz, EKF: 1000 Hz, GNSS: 2 Hz |
| Inputs/Outputs | 4×GPIO |
| Weight | 78 g |
| Size | 76 mm × 68.6 mm × 13.3 mm |
| Power Consumption | 2.2 W |
| Input Voltage | 4.2 V to 16 V |
| Operating Temperature Range | -40 °C to 85 °C |
| MTBF | 389,237 h |
| GNSS Constellations | GPS/QZSS, GLONASS, Galileo, BeiDou |
| GNSS Frequency Bands | L1C/A, L2C, L10F, LSOF, E1B/C, E5B, B1, B2 |
| GNSS Input(s) | Onboard Receiver(s) |
| Sensing Range (Accelerometer) | 8 g |
| Sensing Range (Gyroscope) | 300 °/s |
| Sensing Range (Magnetometer) | 8 Gauss |
| Sensing Range (Pressure) | 1260 mbar |
| Accuracy | Horizontal Position (single point): 1.25 m, Vertical Position (single point): 2 m, Horizontal Position (RTK): 0.02 m, Vertical Position (RTK): 0.02 m, Velocity Accuracy (single point): 0.1 m/s, Velocity Accuracy (RTK): 0.05 m/s, Roll/Pitch: 0.05 °, Heading (dual antenna): 0.25 ° |
| Ingress Protection Rating | Not Rated |
| Housing Material | Aluminum |
| Software | MSCL, ROS, SensorConnect |
| Mounting Style | Screw Down, Precision Alignment |
