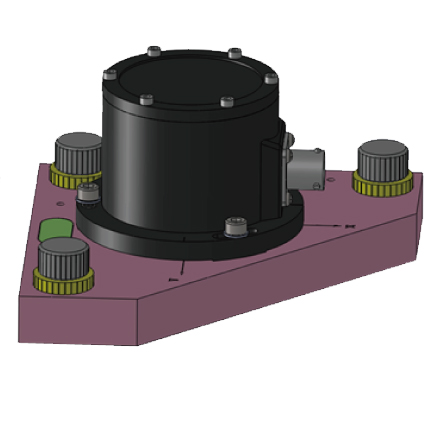

Adjustable base with bubble

• Vigor Technology
• Suit to any SST301/302 series inclinometer
• Dual axis

SST003-01-03 Specifications
Parameter	Value
Order Number	SST003-01-03
Application	Compatible with all SST301 / SST302 series inclinometers
Axis Direction	Dual axis
Adjustment Angle Range	±3°
Bubble Resolution	20 arc-seconds
Adjustable Screw Scale Range	0 – 6.5 mm
Material	304 stainless steel
Size	152 × 152 × 20 mm
Weight	1.5 kg
Temperature Range	–40 °C to +85 °C

Adjust all three screws to half of their range (6.5 mm each). (See picture 1)
Align the X-axis of the SST301/302 inclinometer with the marked “X” line on the base. (See picture 2)
Mount the SST300 inclinometer on the base and adjust screws evenly at the same scale for fine leveling.
