• Fixed installation base for SST300 series
• Three-point adjustment

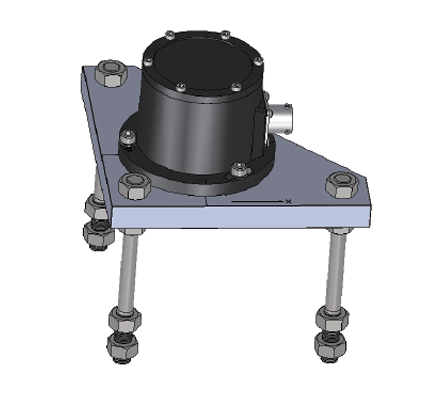

The Fixed Installation Base is designed for carrying and mounting the SST300 inclinometer as an accessory.
It can be used for testing under both dynamic and static conditions.
This base enables quick and secure installation of the inclinometer using a convenient three-point adjustment mechanism.
| Parameter | Value |
|---|---|
| Order Number | SST003-01-05 |
| Axis Direction | Supports dual axis |
| Material | 304 stainless steel |
| Size | 150 × 150 × 10 mm |
| Screw | 304 stainless steel, customizable length |
| Temperature Range | –40 °C to +85 °C |
| Weight | 2 kg |
