• On-board triaxial accelerometer with ±2 to ±40g range
• Continuous, periodic burst, and event-triggered sampling
• Sample up to 4096 Samples per second
• Wide input voltage from 3.3 to 36 V
• Extremely low noise on all axis 25 µg/√Hz or 80 µg/√Hz
• High accuracy temperature sensor ±0.25 °C
• Wireless range up to 2 km (800 m typical)
• Datalog up to 8 million data points
• Easy custom integration with open-source API
LORD Sensing Wireless Sensor Networks enable simultaneous, high-speed sensing and data aggregation from scalable sensor networks. Our wireless sensing systems are ideal for test and measurement, remote monitoring, system performance analysis, and embedded applications.

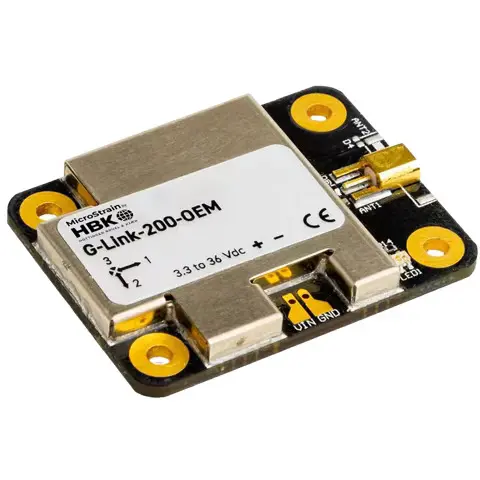

The G-Link-200-OEM has an on-board triaxial accelerometer that allows high-resolution data acquisition with extremely low noise and drift. Additionally, derived vibration parameters allow for long-term monitoring of key performance indicators while maximizing battery life.
Users can easily program nodes for continuous, periodic burst, or event-triggered sampling with the
SensorConnect software. The optional web-based SensorCloud interface optimizes data aggregation, analysis, presentation, and alerts for sensor data from remote networks.
| Parameter | 8 g Version | 40 g Version |
|---|---|---|
| Accelerometer Channels | ||
| Measurement range | ±2 g, ±4 g, or ±8 g (configurable) | ±10 g, ±20 g, or ±40 g (configurable) |
| Noise density | 25 μg/√Hz | 80 μg/√Hz |
| 0 g offset | ±25 mg (±2 g) | ±50 mg (±10 g) |
| 0 g offset vs temperature | ±0.1 mg/°C (typ), ±0.15 mg/°C (max) | ±0.5 mg/°C (typ), ±0.75 mg/°C (max) |
| Integrated sensors | Triaxial MEMS accelerometer, 3 channels | |
| Accelerometer bandwidth | DC to 1 kHz | |
| Resolution | 20-bit | |
| Scale factor error | < 1% full-scale | |
| Cross axis sensitivity | 1% | |
| Sensitivity change (temperature) | ±0.01%/°C | |
| Anti-aliasing filter | 1.5 kHz (−6 dB attenuation) | |
| Low-pass digital filter | 26 to 800 Hz — configurable | |
| High-pass digital filter | Off to 2.5 Hz — configurable | |
| Integrated Temperature Channel | ||
| Measurement range | −40 °C to +85 °C | |
| Accuracy | ±0.25 °C (over full range) | |
| Sampling | ||
| Sampling modes | Continuous, periodic burst, event triggered | |
| Output options | Acceleration; Derived channels: Velocity (IPSrms), Amplitude (Grms & Gpk-pk), Crest Factor | |
| Sampling rates | 1 sample/hour to 4096 samples/second | |
| Sample rate stability | ±5 ppm | |
| Network capacity | Up to 128 nodes per RF channel (bandwidth calculator) | |
| Node synchronization | ±50 μsec | |
| Data storage capacity | 16 MBytes (up to 8,000,000 data points) | |
| Operating Parameters | ||
| Wireless communication range | Outdoor/line-of-sight: 2 km (ideal)*, 800 m (typical)** Onboard antenna: 1 km (ideal)*, 400 m (typical)** Indoor/obstructions: 50 m (typical)** |
|
| Antenna | Surface mount or external via MMCX or U.FL connector | |
| Radio frequency (RF) transceiver carrier | License-free 2.405 to 2.480 GHz with 16 channels | |
| RF transmit power | User-adjustable 0 dBm to 20 dBm (regionally restricted) | |
| Power source | 3.3 – 36 Vdc to solder pads | |
| ESD | ±4000 V (applies to VIN, GND, antenna, and shield) | |
| Operating temperature | −40 °C to +85 °C | |
| Physical Specifications | ||
| Dimensions | 38.1 mm × 29.0 mm × 6.5 mm | |
| Mounting | (4) 2–56 UNC | |
| Weight | 8.17 grams | |
| Conformal coating | Humiseal 1B31 | |
| Integration | ||
| Compatible gateways | All WSDA® gateways | |
| Software | SensorCloud, SensorConnect — Windows 7, 8 & 10 compatible | |
| Software development kit | http://www.microstrain.com/software/mscl | |
| Regulatory compliance | FCC (USA), IC (Canada), CE (European Union), JET (Japan) | |
*Actual range varies with conditions
**Measured with antennas elevated, no obstructions, no RF interferers.
