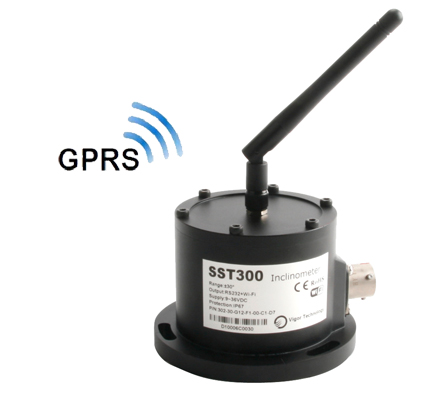

GPRS Inclinometer

Product info

GPRS inclinometer is developed based on Vigor patent tilt measurement technology and combined with a GPRS wireless module to meet remote object monitoring and system maintenance requirements.

Key capabilities

• ±0.02%FS linearity
• ±0.005° Offset
• Combine with gyro module to realize static/dynamic angle measuring for low/rapid leveling
• Combine with vibration module for in-time FFT computations; outputs vibration frequency and amplitude directly, eliminating environmental vibration influence
• Combine with GPS module to realize data synchronization, data acquisition, and local position data at different installation places
• Further confirmed offset, repeatability, hysteresis, turn-on repeatability, etc., as key factors for total performance evaluation
• Enhanced intelligent algorithms drastically reduce cross-axis error and upgrade true tilt angle measuring accuracy
• Patent error calculation and calibration method greatly improves real tilt angle measuring accuracy and reliability
• Greatly reduced measuring errors when the real tilt direction is not consistent with the unit’s sensitive axis
• Short-circuit, transient voltage, and transposition protection for industrial environments
• User-configurable: zero point, baud rate, local gravitational acceleration, zero calibration, vibration suppression filter coefficients, ID address, refresh rate, etc.

Ordering

Example: For a dual-axis GPRS inclinometer with range ±15°, room temperature accuracy ±0.02°, −20~60 ℃ accuracy ±0.02°, GPRS wireless transmission output, 2 m cable with plug, and Vibration function module — choose model: SST302-15-G13-F5-00-C1-D3 (2m).

Other options (see Table 4):
PC application software — order no. SST003-04-09
Magnetic base — order no. SST003-01-01
Complementary power (solar & wind) — SST003-09-03
Accuracy ±30″ field calibration equipment — SST003-10-02

Table 3 — Accessories

Table 4 — Options
