LLB500

• Load Button Load Cell
• Low Deflection
• Standard, Bottom #6-32 Tapped Holes
• Material – 17-4 PH S.S.
• Available with 3 different capacities 15000 lb – 20000 lb – 30000lb

Downloads

Spec Sheet
3D Model (STP)

Overview

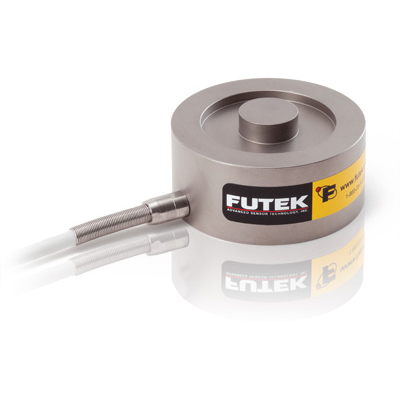

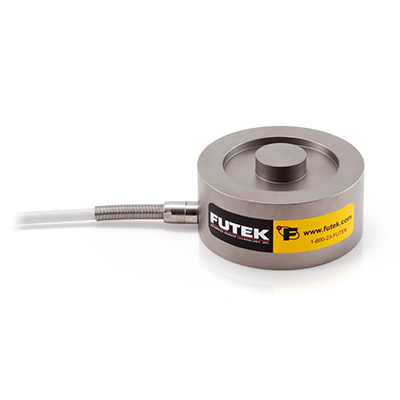

Model LLB500 is a Load Button Load Cell with threaded mounting holes built for press, or inline compression applications.
The standard LLB500 Load Button Load Cell model has a very robust construction available in 17-4 Stainless Steel, with a 2.0” outside
diameter and a 10 ft long 24 AWG 4 conductor shielded Teflon cable. External matched output options are readily available.

Although Load Button Load Cells are traditionally not known for their high accuracy, FUTEK engineers have dispelled this concept by
continuously improving the accuracy of this product. The Load Button Load Cell offers high accuracy with nonlinearity of ±0.5% and
deflection of 0.003” nominal. The standard LLB500 can be modified or customized to meet your requirements and most capacities are in
inventory for 24 hour shipping. Similar to the entire Load Cell product line this model is manufactured in USA and uses metal foil
strain gauge technology.

Product Highlights

Low Deflection
17-4 Stainless Steel Construction
Compression
Utilizes Metal Foil Strain Gauge Technology

FSH00883 — Capacity: 15000 lbs

LLB500, 15000 lb, Load Button Load Cell, Standard, Bottom #6-32 Tapped Holes, Material: 17-4 PH S.S., 24 Awg 4 Conductor Braided Shielded Teflon Cable, 10 ft Long

Dimension	Value
Height (in)	1
Weight (oz)	10
Dia (in)	1.98

Name	Min	Typ	Max	Unit
CHANNEL 1
Compensated Temperature	60		160	F
Excitation	1		18	Vdc
Hysteresis	-0.5		0.5	% of R.O.
Input Resistance		700		Ohms nom.
Insulation Resistance	500			Mohms @ 50 Vdc
Nonlinearity	-0.5		0.5	% of R.O.
Nonrepeatability	-0.1		0.1	% of R.O.
Operating Temperature	-60		200	F
Output Resistance		700		Ohms nom.
Safe Overload			150	% of R.O.
Temperature Shift Span	-0.02		0.02	% of Load/F
Temperature Shift Zero	-0.01		0.01	% of R.O./F
Zero Balance	-3		3	% of R.O.
Capacity			15000	lbs
Rated Output		2		mV/V nom.
Calibration Excitation		10		Vdc

FSH00884 — Capacity: 20000 lbs

LLB500, 20000 lb, Load Button Load Cell, Standard, Bottom #6-32 Tapped Holes, Material: 17-4 PH S.S., 24 Awg 4 Conductor Braided Shielded Teflon Cable, 10 ft Long

Dimension	Value
Height (in)	1
Weight (oz)	10
Dia (in)	1.98

Name	Min	Typ	Max	Unit
CHANNEL 1
Compensated Temperature	60		160	F
Excitation	1		18	Vdc
Hysteresis	-0.5		0.5	% of R.O.
Input Resistance		700		Ohms nom.
Insulation Resistance	500			Mohms @ 50 Vdc
Nonlinearity	-0.5		0.5	% of R.O.
Nonrepeatability	-0.1		0.1	% of R.O.
Operating Temperature	-60		200	F
Output Resistance		700		Ohms nom.
Safe Overload			150	% of R.O.
Temperature Shift Span	-0.02		0.02	% of Load/F
Temperature Shift Zero	-0.01		0.01	% of R.O./F
Zero Balance	-3		3	% of R.O.
Capacity			20000	lbs
Rated Output		2		mV/V nom.
Calibration Excitation		10		Vdc

FSH00885 — Capacity: 30000 lbs

LLB500, 30000 lb, Load Button Load Cell, Standard, Bottom #6-32 Tapped Holes, Material: 17-4 PH S.S., 24 Awg 4 Conductor Braided Shielded Teflon Cable, 10 ft Long

Dimension	Value
Height (in)	1
Weight (oz)	10
Dia (in)	1.98

Name	Min	Typ	Max	Unit
CHANNEL 1
Compensated Temperature	60		160	F
Excitation	1		18	Vdc
Hysteresis	-0.5		0.5	% of R.O.
Input Resistance		700		Ohms nom.
Insulation Resistance	500			Mohms @ 50 Vdc
Nonlinearity	-0.5		0.5	% of R.O.
Nonrepeatability	-0.1		0.1	% of R.O.
Operating Temperature	-60		200	F
Output Resistance		700		Ohms nom.
Safe Overload			150	% of R.O.
Temperature Shift Span	-0.02		0.02	% of Load/F
Temperature Shift Zero	-0.01		0.01	% of R.O./F
Zero Balance	-3		3	% of R.O.
Capacity			30000	lbs
Rated Output		2		mV/V nom.
Calibration Excitation		10		Vdc
