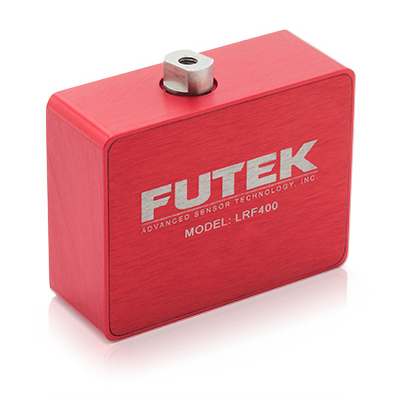

LRF400

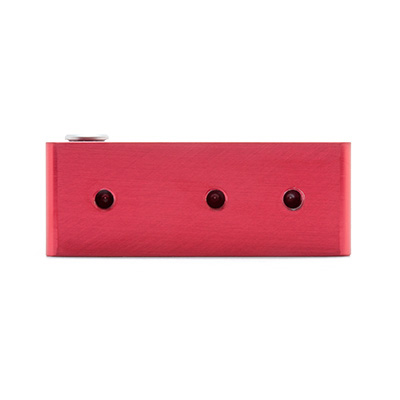

LRF400 - Image 2

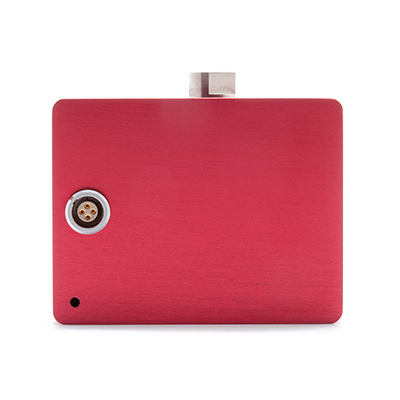

LRF400 - Image 3

LRF400

• Low Deflection
• 2024 Aluminum Construction
• Built In Overload Protection
• In both Tension & Compression
• 0.25 lb – 100 lb capacity range
• Utilizes Metal Foil Strain Gauge Technology
• Weight: 5 oz

Downloads

Spec sheet
3D Model (STP)

Product Description

The Low Profile Tension & Compression Load Cell offers a compact design ideal for low capacity applications. With a height of only 2.25”, the LRF400 Tension and Compression Load Cell is a great selection for tight spaces. The Standard LRF400 model has female/female threads, 2024 Aluminum construction (10 gram – 100 lb), and a Lemo receptacle.

With all of its design features the Tension and Compression Load Cell has a high accuracy with a Nonlinearity of ±0.05%, deflection of 0.003” to 0.0011” nominal and an operating temperature of -60° F to 200° F. This Load Cell can be modified or customized to meet your requirements and most capacities are in our inventory, making them available for 24 hour shipping. Similar to our entire Load Cell product line this model is manufactured in the US and uses metal foil strain gauge technology.

FSH00259 — Capacity: 0.25 lb

LRF400, 0.25 lb, Tension & Compression, Standard, Material: 2024-T4, #10-32 Thread, Overload Protection, 4 Pin Lemo Receptacle, EGG.0B.304.CLL

Dimension Value
Width (in) 0.96
Height (in) 2.58
Length (in) 2.27
Name Min Typ Max Unit
CHANNEL 1
Compensated Temperature 60 160 F
Excitation 1 18 Vdc
Hysteresis -0.05 0.05 % of R.O.
Input Resistance 1120 Ohms nom.
Insulation Resistance 500 Mohms @ 50 Vdc
Nonlinearity -0.05 0.05 % of R.O.
Nonrepeatability -0.05 0.05 % of R.O.
Operating Temperature -60 200 F
Output Resistance 1000 Ohms nom.
Safe Overload 50 lbs
Temperature Shift Span -0.005 0.005 % of Load/F
Temperature Shift Zero -0.005 0.005 % of R.O./F
Zero Balance -3 3 % of R.O.
Capacity 0.25 lbs
Rated Output 2 mV/V nom.
Calibration Excitation 10 Vdc

FSH00260 — Capacity: 0.5 lb

LRF400, 0.5 lb, Tension & Compression, Standard, Material: 2024-T4, #10-32 Thread, Overload Protection, 4 Pin Lemo Receptacle, EGG.0B.304.CLL

Dimension Value
Width (in) 0.96
Height (in) 2.58
Length (in) 2.27
Name Min Typ Max Unit
CHANNEL 1
Compensated Temperature 60 160 F
Excitation 1 18 Vdc
Hysteresis -0.05 0.05 % of R.O.
Input Resistance 1120 Ohms nom.
Insulation Resistance 500 Mohms @ 50 Vdc
Nonlinearity -0.05 0.05 % of R.O.
Nonrepeatability -0.05 0.05 % of R.O.
Operating Temperature -60 200 F
Output Resistance 1000 Ohms nom.
Safe Overload 50 lbs
Temperature Shift Span -0.005 0.005 % of Load/F
Temperature Shift Zero -0.005 0.005 % of R.O./F
Zero Balance -3 3 % of R.O.
Capacity 0.5 lbs
Rated Output 2 mV/V nom.
Calibration Excitation 10 Vdc

FSH00261 — Capacity: 1 lb

LRF400, 1 lb, Tension & Compression, Standard, Material: 2024-T4, #10-32 Thread, Overload Protection, 4 Pin Lemo Receptacle, EGG.0B.304.CLL

Dimension Value
Width (in) 0.96
Height (in) 2.58
Length (in) 2.27
Name Min Typ Max Unit
CHANNEL 1
Compensated Temperature 60 160 F
Excitation 1 18 Vdc
Hysteresis -0.05 0.05 % of R.O.
Input Resistance 1120 Ohms nom.
Insulation Resistance 500 Mohms @ 50 Vdc
Nonlinearity -0.05 0.05 % of R.O.
Nonrepeatability -0.05 0.05 % of R.O.
Operating Temperature -60 200 F
Output Resistance 1000 Ohms nom.
Safe Overload 50 lbs
Temperature Shift Span -0.005 0.005 % of Load/F
Temperature Shift Zero -0.005 0.005 % of R.O./F
Zero Balance -3 3 % of R.O.
Capacity 1 lbs
Rated Output 2 mV/V nom.
Calibration Excitation 10 Vdc

FSH00262 — Capacity: 2.2 lb

LRF400, 2.2 lb, Tension & Compression, Standard, Material: 2024-T4, #10-32 Thread, Overload Protection, 4 Pin Lemo Receptacle, EGG.0B.304.CLL

Dimension Value
Width (in) 0.96
Height (in) 2.58
Length (in) 2.27
Name Min Typ Max Unit
CHANNEL 1
Compensated Temperature 60 160 F
Excitation 1 18 Vdc
Hysteresis -0.05 0.05 % of R.O.
Input Resistance 1120 Ohms nom.
Insulation Resistance 500 Mohms @ 50 Vdc
Nonlinearity -0.05 0.05 % of R.O.
Nonrepeatability -0.05 0.05 % of R.O.
Operating Temperature -60 200 F
Output Resistance 1000 Ohms nom.
Safe Overload 250 lbs
Temperature Shift Span -0.005 0.005 % of Load/F
Temperature Shift Zero -0.005 0.005 % of R.O./F
Zero Balance -3 3 % of R.O.
Capacity 2.2 lbs
Rated Output 2 mV/V nom.
Calibration Excitation 10 Vdc

FSH00263 — Capacity: 5 lb

LRF400, 5 lb, Tension & Compression, Standard, Material: 2024-T4, #10-32 Thread, Overload Protection, 4 Pin Lemo Receptacle, EGG.0B.304.CLL

Dimension Value
Width (in) 0.96
Height (in) 2.58
Length (in) 2.27
Name Min Typ Max Unit
CHANNEL 1
Compensated Temperature 60 160 F
Excitation 1 18 Vdc
Hysteresis -0.05 0.05 % of R.O.
Input Resistance 1120 Ohms nom.
Insulation Resistance 500 Mohms @ 50 Vdc
Nonlinearity -0.05 0.05 % of R.O.
Nonrepeatability -0.05 0.05 % of R.O.
Operating Temperature -60 200 F
Output Resistance 1000 Ohms nom.
Safe Overload 250 lbs
Temperature Shift Span -0.005 0.005 % of Load/F
Temperature Shift Zero -0.005 0.005 % of R.O./F
Zero Balance -3 3 % of R.O.
Capacity 5 lbs
Rated Output 2 mV/V nom.
Calibration Excitation 10 Vdc

FSH00264 — Capacity: 10 lb

LRF400, 10 lb, Tension & Compression, Standard, Material: 2024-T4, #10-32 Thread, Overload Protection, 4 Pin Lemo Receptacle, EGG.0B.304.CLL

Dimension Value
Width (in) 0.96
Height (in) 2.58
Length (in) 2.27
Name Min Typ Max Unit
CHANNEL 1
Compensated Temperature 60 160 F
Excitation 1 18 Vdc
Hysteresis -0.05 0.05 % of R.O.
Input Resistance 1120 Ohms nom.
Insulation Resistance 500 Mohms @ 50 Vdc
Nonlinearity -0.05 0.05 % of R.O.
Nonrepeatability -0.05 0.05 % of R.O.
Operating Temperature -60 200 F
Output Resistance 1000 Ohms nom.
Safe Overload 250 lbs
Temperature Shift Span -0.005 0.005 % of Load/F
Temperature Shift Zero -0.005 0.005 % of R.O./F
Zero Balance -1 1 % of R.O.
Capacity 10 lbs
Rated Output 2 mV/V nom.
Calibration Excitation 10 Vdc

FSH00265 — Capacity: 25 lb

LRF400, 25 lb, Tension & Compression, Standard, Material: 2024-T4, #10-32 Thread, Overload Protection, 4 Pin Lemo Receptacle, EGG.0B.304.CLL

Dimension Value
Width (in) 0.96
Height (in) 2.58
Length (in) 2.27
Name Min Typ Max Unit
CHANNEL 1
Compensated Temperature 60 160 F
Excitation 1 18 Vdc
Hysteresis -0.05 0.05 % of R.O.
Input Resistance 1120 Ohms nom.
Insulation Resistance 500 Mohms @ 50 Vdc
Nonlinearity -0.05 0.05 % of R.O.
Nonrepeatability -0.05 0.05 % of R.O.
Operating Temperature -60 200 F
Output Resistance 1000 Ohms nom.
Safe Overload 250 lbs
Temperature Shift Span -0.005 0.005 % of Load/F
Temperature Shift Zero -0.005 0.005 % of R.O./F
Zero Balance -1 1 % of R.O.
Capacity 25 lbs
Rated Output 2 mV/V nom.
Calibration Excitation 10 Vdc

FSH00266 — Capacity: 50 lb

LRF400, 50 lb, Tension & Compression, Standard, Material: 2024-T4, #10-32 Thread, Overload Protection, 4 Pin Lemo Receptacle, EGG.0B.304.CLL

Dimension Value
Width (in) 0.96
Height (in) 2.58
Length (in) 2.27
Name Min Typ Max Unit
CHANNEL 1
Compensated Temperature 60 160 F
Excitation 1 18 Vdc
Hysteresis -0.05 0.05 % of R.O.
Input Resistance 1120 Ohms nom.
Insulation Resistance 500 Mohms @ 50 Vdc
Nonlinearity -0.05 0.05 % of R.O.
Nonrepeatability -0.05 0.05 % of R.O.
Operating Temperature -60 200 F
Output Resistance 1000 Ohms nom.
Safe Overload 250 lbs
Temperature Shift Span -0.005 0.005 % of Load/F
Temperature Shift Zero -0.005 0.005 % of R.O./F
Zero Balance -1 1 % of R.O.
Capacity 50 lbs
Rated Output 2 mV/V nom.
Calibration Excitation 10 Vdc

FSH00267 — Capacity: 100 lb

LRF400, 100 lb, Tension & Compression, Standard, Material: 2024-T4, #10-32 Thread, Overload Protection, 4 Pin Lemo Receptacle, EGG.0B.304.CLL

Dimension Value
Width (in) 0.96
Height (in) 2.58
Length (in) 2.27
Name Min Typ Max Unit
CHANNEL 1
Compensated Temperature 60 160 F
Excitation 1 18 Vdc
Hysteresis -0.05 0.05 % of R.O.
Input Resistance 1120 Ohms nom.
Insulation Resistance 500 Mohms @ 50 Vdc
Nonlinearity -0.05 0.05 % of R.O.
Nonrepeatability -0.05 0.05 % of R.O.
Operating Temperature -60 200 F
Output Resistance 1000 Ohms nom.
Safe Overload 250 lbs
Temperature Shift Span -0.005 0.005 % of Load/F
Temperature Shift Zero -0.005 0.005 % of R.O./F
Zero Balance -1 1 % of R.O.
Capacity 100 lbs
Rated Output 2 mV/V nom.
Calibration Excitation 10 Vdc
