• Extremely fast capacitive discharge bonding rate of up to 60 bonds per minute
•Off-the-shelf removable/rechargeable Li-Ion batteries minimize down time
1200 bonds per battery charge
• Intuitive and simple-to-use control interface
• Ballistic nylon bag features shoulder strap, belt loops, carabiner attachment, and large pocket for handle and grounding cables with inner sleeve for spare parts
• Lightweight and portable. Ideal for working from ropes access, aerial lift, or in a laboratory
This specialized tool combines an extremely fast spot-bonding rate with enhanced safety and portability features.
Similar to all BDI instruments, the Stinger™ is rugged, efficient, and reliable in all types of adverse field conditions.
Over the last 30 years, BDI has installed tens of thousands of strain gages around the world. Based on this extensive experience,

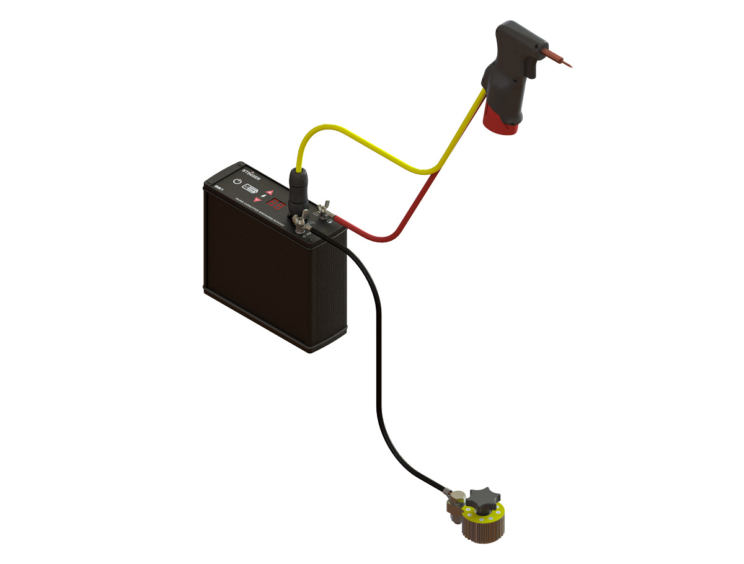

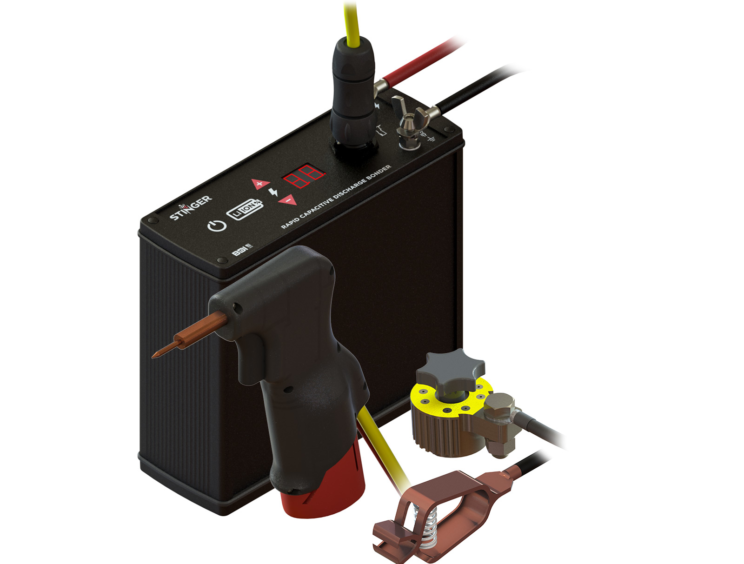

we’ve developed the new S100 Stinger™, a rapid capacitive discharge bonder for spot bonding weldable strain gages.
You’ll be amazed at how fast and accurate your strain gage installations can be completed.
| Parameter | Specification |
|---|---|
| Model | S100 |
| Bonding Voltage | 10 to 24.5 VDC |
| Bonding Energy | Selectable 10 to 60 Joules |
| Bonding Rate | Up to 60/minute |
| Bonds per Battery Charge1 | 1200 at 35 Joules |
| Operating Time | Approx. 20 hours |
| Handle Assembly Cables2 | Power cable: 5 ft (1.5 m) 6 AWG red Neoprene cable Trigger cable: 5 ft (1.5 m) 18/3 AWG yellow flexible Super Vu-Tron® Supreme |
| Grounding Assembly Cables | Magnetic mount & mechanical clamp assemblies, both include 5 ft (1.5 m) 6 AWG black Neoprene cable |
| POWER | |
| Li-Ion Battery3,4,5 | Milwaukee M12™ REDLITHIUM™ 3.0 (12 VDC, 3.0 Amp-Hr.) |
| Charger | Milwaukee M12™ Lithium-Ion Battery Charger |
| LCD DISPLAY | |
| Battery | Estimated Remaining Battery Percentage |
| Energy | Joules |
| Error Message | Hardware Error Codes |
| SAFETY | |
| Auto Detect Ground | <1 Ohm resistance test on return ground path |
| Self Test on Power Up | Validates hardware functionality |
| PHYSICAL | |
| Enclosure | Rugged powder-coated aluminum extrusion, splashproof |
| Overall Size (W × L × H) | Case: 8 × 8.5 × 3 in. (203 × 216 × 76 mm) Cables, Trigger, Clamps: 8 × 8 × 3 in. (203 × 203 × 76 mm) |
| Weight6 | ~8.3 lb (3.8 kg) |
| TEMPERATURE | |
| Operating / Storage | −4° to +140°F (−20° to +60°C) |
| Recommended Battery Charging | +40° to +105°F (+4° to +40°C) |
| WARRANTY | |
| Limited Warranty7 | 3 Years |
