• Vigor Technology
• Up to ±0.001° bias stability within 12 months
• Bias temperature drift achieve ±0.0005°/℃
• Optimization design based on CAE & EDA
• High reliability & flexibility
• Multi-functional management software
• Less than ±3″ bias
• Less than ±1.5″ absolute linearity error
• Kinds of land & aerospace application interfaces
• 3 classes: Industry class, Universal military class, High-quality military class
• Up to 15000 hours of MTBF
• Successfully applied to missile launch, radar, aerospace and other military projects

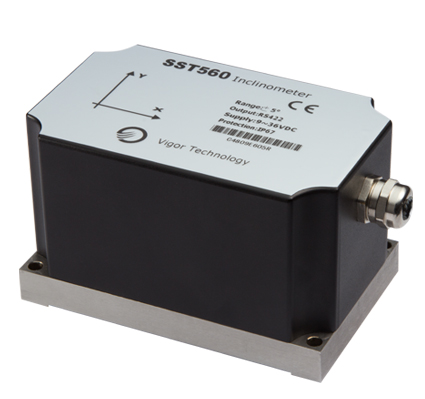

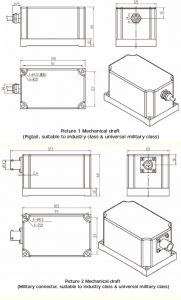

SST500 inclinometer is a revolutionary tilt measurement product, fully absorbs and learns from high precision military inertial navigation technology,
precise fusion with machine-electric & inertial test technologies, applied to variety of high-class industrial & military applications.
SST500 inclinometer adopts inertial navigation grade servo accelerometer, with <0.1μg resolution, >25 Hz frequency response,
>120 dB signal-noise ratio. Achieve ±1.3″ accuracy at room temperature.
SST500 performs excellent dynamic characteristics, long-term stability, and environmental adaptability, experienced with various static
& quasi-static long-term works under industrial & military harsh environment.
Thanks Vigor’s engineers for making complete modal testing for whole body & key components,
to minimize interference from outside shock & vibration.
To maximize reliability of SST500 inclinometer, modeling analysis, regulated software & hardware reliability design,
selected proven components directory, finite element analysis (thermal reliability analysis, structural reliability analysis)
and FMEA have been made to ensure the optimal performance and stability as well.

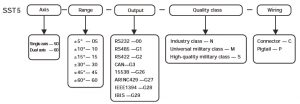

| Socket Pin | Pigtail Cable | Output | |||
|---|---|---|---|---|---|
| RS232 | RS485 | RS422 | CAN | ||
| A | Red | Power + | Power + | Power + | Power + |
| B | Black | Power – | Power – | Power – | Power – |
| C | Green | Signal GND | Signal GND | Signal GND | Signal GND |
| D | Yellow | NC | NC | RS422-RXD+ | CANH |
| E | White | NC | NC | RS422-RXD– | CANL |
| F | Blue | RS232-TXD | RS485-A | RS422-TXD+ | NC |
| G | Brown | RS232-RXD | RS485-B | RS422-TXD– | NC |
Note: 1. Don’t connect signal GND and Power GND together.
2. Other outputs available on request.
