• Vigor Technology SST900
• WiFi radio range up to 200m
• Both Wi-Fi +485/422
• Built-in lithium battery
• Measurement accuracy ±1″
• Resolution 0.05″
• Offset ≤±5″,
• Absolute linear error ≤±1.0″

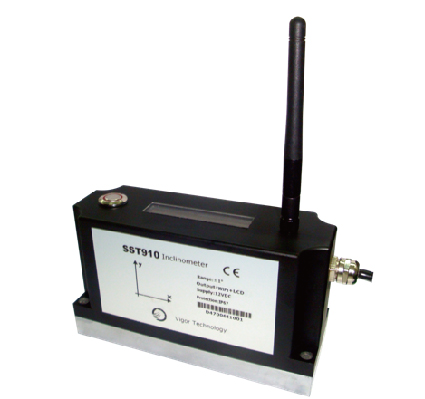

SST900 levelmeter based on servo accelerometer principle, core sensitive devices resolution up to 0.1μg,
frequency response 10 Hz, SNR is more than 120 dB. The highest accuracy reach to ±1.0″.
Do not like as other levelmeter only to check null position which need very long warming time and large
cross-axis sensitivity, SST900 has rapid starting-time (less than 3 min), less than 0.1% FS cross-axis sensitivity
as well as less than 2 mrad misalignment. It can keep the same accuracy on any angle point.
SST900 is flexible to local and remote inspection with LCD indicator or Wi-Fi interface.
The featured iAngle mobile software can be runned on Apple® iPad/iPhone® devices
or other mobile terminal devices.

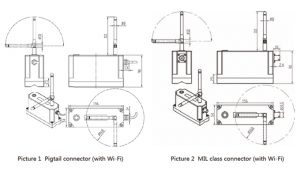

| Pin | Function | |||
|---|---|---|---|---|
| RS232 | RS485 | RS422 | Wi-Fi | |
| A | Power + | Power + | Power + | Power + |
| B | Power GND | Power GND | Power GND | Power GND |
| C | Signal GND | Signal GND | Signal GND | Signal GND |
| D | NC | NC | RS422-RXD+ | NC |
| E | NC | NC | RS422-RXD– | NC |
| F | RS232–TXD | RS485–A | RS422–TXD+ | RS232–TXD |
| G | RS232–RXD | RS485–B | RS422–TXD– | RS232–RXD |

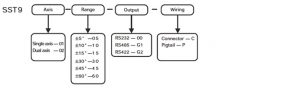

| Item | P/N | Option Name | Function |
|---|---|---|---|
| Software | SST003-04-10-01 (Based on iPhone) | RS485 output | Standard industrial ModBus protocol, can be connected to PLC |
| SST003-04-10-02 (Based on iPad) | RS422 output | Standard industrial interface, can be connected to PLC |
