• 1 input channel supporting Thermocouples, Resistance Thermometers and Thermistors
• On-board linearization algorithms supporting a wide range of temperature transducers
• Up to 128 Hz sampling
• High resolution 24-bit data
• Digital filtering for up to 120 db rejection of 50 and 60 Hz noise
• Wireless range up to 1km (400 m)
• Supply power from 3.3 to 30 V
• Continuous, periodic burst, and event-triggered sampling
• LXRS protocol allows lossless data collection, scalable networks and node synchronization of ±50 µs

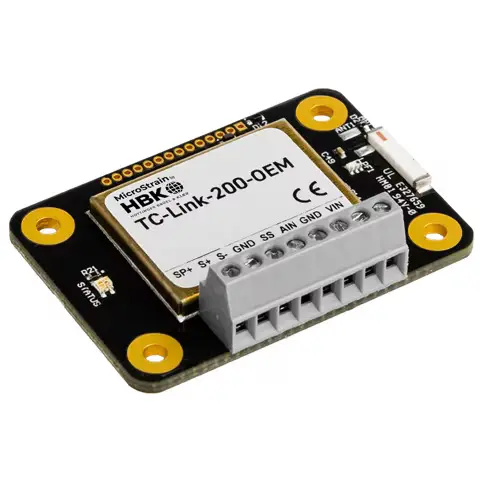

The TC-Link®-200-OEM allows users to collect data from a range of sensor types including thermocouples, resistance thermometers, and thermistors. The node supports high-resolution, low-noise data collection from 1 temperature transducer at sample rates up to 128 Hz.
Users can easily program nodes for continuous, periodic burst, or event-triggered sampling with the SensorConnect software. The optional web-based SensorCloud® interface optimizes data aggregation, analysis, presentation, and alerts for sensor data from remote networks.
| Parameter | Details |
|---|---|
| General | |
| Sensor input channels | Thermocouple, RTD, or Thermistor input, 1 channel |
| Integrated sensors | Temperature CJC, 1 channel |
| Digital filter | Adjustable low-pass filter, 3 dB frequency as low as 2.3 Hz, up to 120 dB 50/60 Hz rejection |
| Thermocouple Input | |
| Measurement range | −210 °C to 1820 °C (depending on thermocouple type) |
| Accuracy | ±0.5 °C (20–70 °C node temperature) ±1 °C (−40–85 °C node temperature) |
| Resolution | 0.1 °C |
| Compatible types | J, K, N, R, S, T, E, and B |
| RTD Input | |
| Measurement range | −200 °C to 850 °C |
| Accuracy | ±0.5 °C (depending on RTD accuracy) |
| Resolution | 0.01 °C |
| Compatible types | PT-10, PT-50, PT-100, PT-200, PT-500, PT-1000 |
| Thermistor Input | |
| Measurement range | −40 °C to 150 °C (depending on thermistor type) |
| Accuracy | ±0.2 °C (depending on thermistor accuracy) |
| Resolution | 0.02 °C |
| Compatible types | 44004, 44033, 44005, 44030, 44006, 44031, 44007, 44034, 44008, 44032, YSI-400 |
| Integrated Temperature Cold Junction Compensation (CJC) Channel | |
| Compensation range | −40 °C to 85 °C (0 °C to 85 °C for Type B thermocouples) |
| Accuracy | ±0.13 °C (20–70 °C), ±0.25 °C (−40–85 °C) |
| Resolution | 0.02 °C |
| Sampling | |
| Sampling modes | Continuous, periodic burst, event triggered |
| Output options | Temperature, mV, Resistance or custom |
| Sampling rates | 1 channel: up to 128 Hz |
| Sample rate stability | ±5 ppm |
| Network capacity | Up to 128 nodes per RF channel (bandwidth calculator) |
| Node synchronization | ±50 µs |
| Data storage capacity | 16 MB (up to 8,000,000 data points) |
| Operating Parameters | |
| Wireless communication range | Outdoor line-of-sight: 2 km (ideal), 800 m (typical) Onboard antenna: 1 km (ideal), 400 m (typical) Indoor/obstructions: 50 m (typical) |
| Radio frequency (RF) transceiver carrier | License-free 2.405–2.480 GHz (16 channels) |
| RF transmit power | User-set 0 dBm to 20 dBm (regionally restricted) |
| Operating temperature | −40 °C to +105 °C |
| ESD | 4 kV |
| Physical Specifications | |
| Dimensions | 41.3 mm × 29 mm × 5.9 mm |
| Interface | Solder or screw-down terminal available |
| Weight | 7 grams |
| Integration | |
| Compatible gateways | All WSDA gateways |
| Software | SensorCloud®, SensorConnect — Windows 7, 8 & 10 compatible |
| Software development kit | http://www.microstrain.com/software/mscl |
| Regulatory compliance | FCC (USA), IC (Canada), CE (European Union), JET (Japan) |
