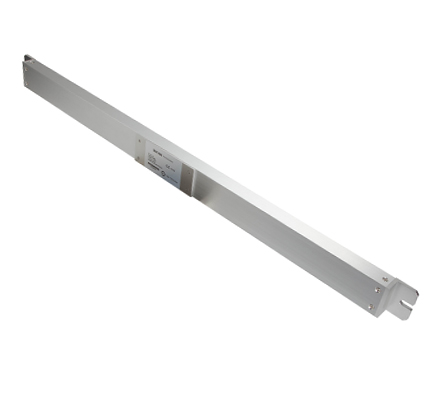

Tilt Beam Sensor

• Vigor Technology Tilt Beam
• High resolution, accuracy & stability
• High safety remote signal transmission distance＞500m
• U-Shaped openings in both ending, easy to connect sensors
• IP65protection
• Alloyed & anodized aluminum housing, corrosion-resistant,wear-resistant, artistic

Downloads

Datasheet

Based on patented SST300 inclinometer, Vigor developed tilt beam sensor for civil engineering industry, by combined various accessories and options, achieve mostly facilitates field applications.

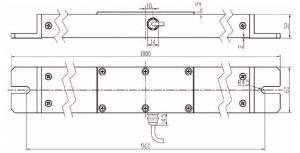

The beam housing SST300 is used to measure rotated angle of two fixed points. Install sensor into hard beam (standard length is 1 m, others are optional), fix sensor in monitored structure, by rotated angle can conversion out displacement data of beam length. Many sensors can be integrated to set up a PLC/DAQ system, so end user can remotely monitor horizontal & vertical gesture of the application, such as dam, tunnel and excavation wall. Please refer to picture 1.

Generally, we install the tilt beam sensor with expansion bolt, screw by grout, or epoxy anchor, refer to picture 2.

Table 2 Output wiring
Cable wire color	4~20 mA	−5~+5 VDC	RS232	RS485	CAN	TCP/IP	Wi-Fi
Red	Power+	Power+	Power+	Power+	Power+	Power+	Power+
Black	Power−	Power−	Power−	Power−	Power−	Power−	Power−
Green	Signal GND	Signal GND	Signal GND	Signal GND	NC	Signal GND	NC
Yellow	Iout	Vout	NC	NC	NC	E-RXD+	NC
White	NC	NC	NC	NC	NC	E-RXD−	NC
Blue	NC	NC	TXD	RS485-A	CAN-H	E-TXD+	NC
Brown	NC	NC	RXD	RS485-B	CAN-L	E-TXD−	NC

For example: if order a tilt beam sensor, with range ±5°, room temperature accuracy ±0.01°, −20~60℃ accuracy ±0.02, Wi-Fi wireless transmission, 2 meters cable, GPS function, the model should be chosen as:
SST301-05-G12-F1–B4-C10-D3.

Other options (see Table 3.2):
Complementary power combined with solar and wind energy — order number SST003-09-03.
iAngle+ PC application software — order number SST003-04-10-02.

Table 3.1 Accessories
Item	Order Code	Name	Function
Output interface	G1	RS485 output	RS-485 transceiver isolated, half/full-duplex ±15 kV ESD protection (RS-485 pins) ANSI/TIA/EIA-485-A-98 & ISO 8482:1987(E) UL1577 — 2500 Vrms 1 min Up to 500 kbps; max 256 nodes CMRR > 25 kV/µs; Modbus-RTU (HEX/ASCII)
	G3	CAN output	ISO/DIS 11898; twisted-pair CAN 2.0A / 2.0B; isolated 15 baud rates (5–1000 kbps) Distance up to 10 km
	G9	TCP/IP interface	10/100M auto; AUTO MDI/MDIX DNS; multi-PC UDP Baud 300–230.4 kbps (adjustable) Modes: TCP Server/Client, UDP, Real COM, etc. Auto disconnect on GSM detach
	G12	Wi-Fi interface	IEEE 802.11b/g (2.4 GHz ISM), Wi-Fi compatible Tx power 15 dBm ±1.5 dBm Rates: 802.11b 1/2/5.5/11 Mbps; 802.11g 6–54 Mbps AP & Ad-Hoc; WEP40/104 (64/128-bit) Setup time < 3–6 s (depends on encryption)
	G19	4–20 mA output	Angle-proportional; Linearity ≤ 0.02%FS Output impedance 39 Ω; load ≤ 625 Ω Overheat & access protection Built-in to SST300
	G21	−5~+5 VDC output	Angle-proportional; Linearity ≤ 0.02%FS Output impedance 100 Ω; ±10 mA max Short-circuit & transient protection Built-in to SST300
Functional model (built-in)	F1	GPS module	2.5 m CEP (2.0 m @ SBAS); gravity correction Time pulse 30 ns RMS; refresh 4 Hz Speed 0.1 m/s; GPS L1 C/A; GALILEO OS; GLONASS FDMA; SBAS (WAAS/EGNOS/MSAS) Higher-accuracy GPS available
Functional model (built-in)	F5	Vibration module	3-axis vibration, ≤ 5 kHz; Range: 0 g ~ ±1/±5/±10/±20 g Sampling 20.48 kSPS (real-time); 11 programmable filters FFT 512-point (x,y,z); Windows: Rectangle/Hanning/Flat top FFT average up to 255; Stores 14 FFT records (x,y,z) 6 programmable spectrums (alarm)
Temperature drift	D1	Temperature drift	Compensation 0–60℃, accuracy ±0.01° @ ≤ ±30°
	D3	Temperature drift	Compensation −20–60℃, accuracy ±0.02° @ ≤ ±30°
	D5	Temperature drift	Compensation −30–60℃, accuracy ±0.03° @ ≤ ±30°
	D7	Temperature drift	Compensation −40–65℃, accuracy ±0.05° @ ≤ ±30°

Table 3.2 Options
Item	P/N	Option name	Function
Display	SST003-04-01	Single LED Instrument	For single-axis inclinometer; RS485/RS232 (Modbus-RTU) Password lock; restore factory settings Accuracy 0.2%; dual LED with 0–100% bar AC 100–240 V; 20–29 VDC output to power inclinometer See <SST003-04-01 datasheet>
	SST003-04-02	Dual LED Instrument	For dual-axis or two single-axis; RS485/RS232 (Modbus-RTU) Math: +/−, ×, ÷; Accuracy 0.2% Dual LED with 0–100% bar; AC 100–240 V 20–29 VDC output to inclinometer See <SST003-04-02 datasheet>
	SST003-04-09	PC application software	Settings/Commands/Tools/Viewgraph; playback & real-time modes Windows XP/7; see <SST003-04-09 datasheet>
	SST003-04-10-01	iAngle PC application software	For iPhone; ≥ 200 m communication Tilt settings: zero, range, sampling, filter, etc.; alarm/graph/compass/bubble Sampling 20/s
	SST003-04-10-02	iAngle+ PC application software	For iPad; ≥ 200 m communication; sampling 20/s Tilt settings: zero, range, sampling, filter, etc.; alarm/graph/compass/bubble
Power	SST003-09-03	Complementary power	Solar + wind for long-term field use Inputs: fan 0.6 kW, solar 0.3 kW; Battery 24 VDC AC output 1 kW @ 220 VAC; DC 24 VDC @ 1 A Applies to all SST series
Test report	SST003-11-01	Test report for cross-axis error	Banking tilt; average 11 points of full range
	SST003-11-02	Test report for absolute linearity	Average 21 points of full range
	SST003-11-08	MTBF analysis report	MTBF statistical analysis
	SST003-11-09	FMEA analysis report	FMEA analysis
	SST003-11-10	Test report for life simulation	Zero & full-range over 7 days continuous power on
	SST003-11-12	Test report by China National organization	Average 5 points of full range by Shanghai Institute of Measurement and Testing Technology (www.simt.com.cn)
	SST003-11-13	Test report for salt spray	MIL-STD (MIL-810F-509.4)

Appendix: Angle conversion table
	degrees	arc minutes	arc seconds	μradians	mm/meter	inch/ft
1 degree =	1	60	3600	17453	17.453	0.2094
1 arc minute =	0.01667	1	60	290.9	0.2909	3.49×10−3
1 arc second =	2.78×10−4	0.01667	1	4.848	4.85×10−3	5.82×10−5
1 μradian =	5.73×10−5	2.44×10−3	0.2063	1	0.001	1.20×10−5
1 mm/meter =	0.0573	3.436	206.3	1000	1	0.0120
1 inch/ft =	4.775	286.5	17189	83333	83.33	1
