TOC Tilt Switch

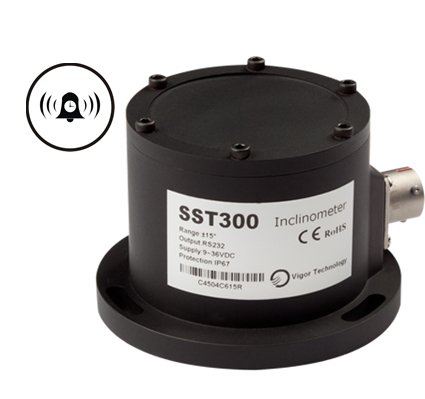

• Vigor Technology TOC Tilt Switch

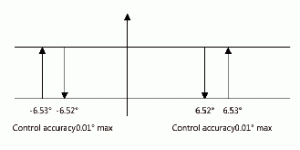

• Hysteresis up to 0.01°
• Trip repeatability up to 0.005°
• Dual trip point each axis
• Adjustable filtering when vibrating
• Electrical damp – Eliminates inadvertent outputs due to momentary movement
• Delay time adjustable
• Efficient EMC protection
• IP67 Protection
• Both tilt data+switch signal output
• Omini-direction alarm optional

Downloads

Datasheet

TOC tilt switch is used in high accuracy and strictly security requirements with hysteresis up to 0.01°. Through the real higher combined absolute accuracy, greatly improve the real alarm accuracy than others with about 3% cross-axis sensitivity. This tilt switch employs transistor open collector output, with rapid response and high drive ability. Via RS232 interface, user can adjust alarm point, damp ratio, alarm delay time etc.

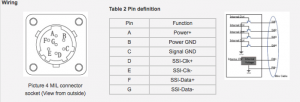

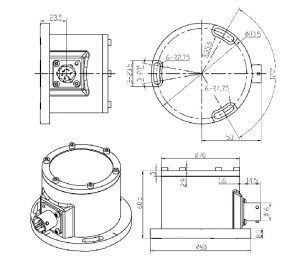

Picture 3 Housing with MIL class connector

For example, if order a dual axis tilt switch, with range ±15°, room temperature accuracy ±0.02°, −20~60℃ accuracy ±0.02°, switch output, 8 meters cable with plug, the model should be:
SST302-15-G25-00-00-C1-D3 (8 m).

Other options (see Table 4):
PC application software — order number SST003-04-09
Magnetic base — order number SST003-01-01

Table 3 Accessories
Item	Order Code	Accessories name	Function
Functional model (built-in)	C1	Standard Cable with plug	Military class connector (meet MIL-C-26482), standard 2 m cable, IP67 protection, heavy duty up to 30 kg
	C4	Armoured cables	Increase cable mechanical strength, anti-erosion and anti-jamming capability
	C6	Standard plug	According to MIL-C-26482, IP67 protection
Temperature drift	D1	Temperature drift	Temperature compensation range 0~60℃, accuracy ±0.01° @ ≤ ±30°
	D2	Temperature drift	Temperature compensation range 0~60℃, accuracy ±0.01° @ > ±30°
	D3	Temperature drift	Temperature compensation range −20~60℃, accuracy ±0.02° @ ≤ ±30°
	D4	Temperature drift	Temperature compensation range −20~60℃, accuracy ±0.02° @ > ±30°
	D5	Temperature drift	Temperature compensation range −30~60℃, accuracy ±0.03° @ ≤ ±30°
	D6	Temperature drift	Temperature compensation range −30~60℃, accuracy ±0.03° @ > ±30°
	D7	Temperature drift	Temperature compensation range −40~65℃, accuracy ±0.05° @ ≤ ±30°
	D8	Temperature drift	Temperature compensation range −40~65℃, accuracy ±0.05° @ > ±30°
	D9	Temperature drift	Temperature compensation range −40~85℃, accuracy ±0.05° @ ≤ ±30°
	D10	Temperature drift	Temperature compensation range −40~85℃, accuracy ±0.05° @ > ±30°

Table 4 Options
Item	P/N	Option name	Function
Installation tools	SST003-01-01	Magnetic base	50 kg suction, permanent magnet, stainless steel materials
Installation tools	SST003-01-06	Alignment block	Positioning sensor’s XY axis to align with actual tilt direction
Software	SST003-04-09	PC application software	Setting: serial port, data save, display, alarm Command: zero, filter coefficient, refresh rate, gravity, ID address, output mode Tools: zero calibration, software update, playback mode, real-time display, cursor load, raw data view Viewgraph: status bar, toolbar, data area, chart area OS: Windows XP, Windows 7
Test report	SST003-11-01	Test report for cross-axis sensitivity	Banking tilt test, average 11 points of full range
	SST003-11-03	Test report for allowed installations misalignment	Axis migration test for vertical and horizontal axis of inclinometer, 3 angles
	SST003-11-04	Response time and hysteresis	Time response curve/data and hysteresis characteristics report
	SST003-11-05	Test report for vibration	According to inclinometer’s standard vibration characteristic
	SST003-11-06	Test report for mechanical shock	According to inclinometer’s standard shock characteristic
	SST003-11-08	MTBF analysis report	MTBF statistical analysis report
