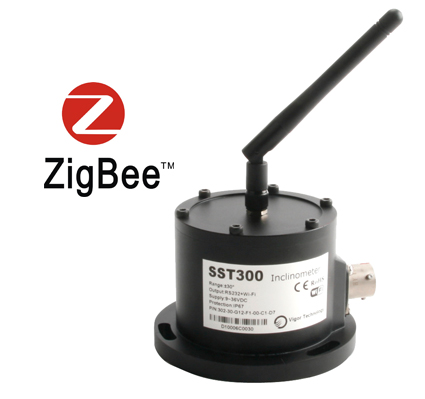

ZigBee Inclinometer

• Vigor Technology ZigBee Inclinometer
• Performs IEEE802.15.4, frequency 2.4G ISM

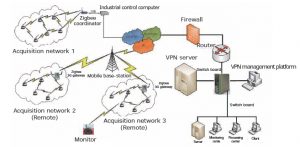

• Support star networks and peer-to-peer network, more security
• Radio frequency passed by CE, FCC and other international certifications
• Low power consumption, support 100m or 1km distance
• Patent tilt measurement technology, to achieve true high accuracy

Downloads

Datasheet

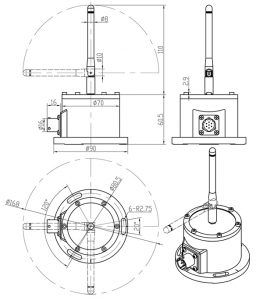

Zigbee inclinometer is based on Vigor’s patent tilt measurement technology with Zigbee wireless module which with IEEE802.15.4 standard, to meet wild, unattended, hazardous and confined space applications for remote monitoring and maintenance requirements.
Zigbee inclinometer also has a highly flexible wireless network capability and strong tilt measurement capability:

√ ±0.02%FS linearity
√ ±0.005° Offset, realize higher accuracy for platform leveling
√ Combine with gyro module, realize static/dynamic angle measuring
√ Combine with vibration module, realize FFT computations in-time, output vibration frequency and amplitude data directly, eliminate the influence of environment vibration
√ Further confirmed that offset, repeatability, hysteresis, turn on repeatability etc. parameters which are important influence factors to unit total performance evaluation
√ Internal enhanced advanced intelligent algorithms drastically reduce cross-axis error, upgrades real tilt angle measuring accuracy, abandoned the traditional incomplete understanding for tilt angle measurement precision concept
√ Greatly reduce measuring errors when the real tilt direction not consistent for unit’s sensitive axis
√ Performs with short-circuit, transient voltage, transposition protection to adapt to industry environment

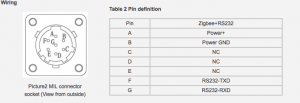

For example, if order a dual-axis Zigbee inclinometer, with range ±15°, room temperature accuracy ±0.02°, -20~60℃ accuracy ±0.02°, output Zigbee interface, 2 meters cable with plug, the model should be chosen as
SST302-15-G11-00-00-C1-D3 (2m)

Meanwhile some options (see Table 4):
Zigbee monitor — order number SST003-04-08
Zigbee-USB converter — order number SST003-05-19
Zigbee wireless gateway — order number SST003-05-20

Table 3 Accessories
Item	Order Code	Accessories name	Function
Functional model (built-in)	F1	GPS module	Positioning accuracy 2.5m CEP; 2.0m @ SBAS Local gravity acceleration automatic revision Time pulse accuracy: 30ns RMS, Original data refresh rate: 4Hz Speed accuracy: 0.1m/s, Receiver type: GPS L1 band, C/A code; Higher positioning accuracy GPS available
	F3	Compass module	Plane compass technology Range: 0~360° Accuracy: <±1.0° RMS, Resolution: 0.01° Hard-iron compensation circuit Higher accuracy or 3D compass module available
	F4	Gyro module	±100/250/400°/s, X/Y/Z axis dynamic angular rate In-run bias: ±0.02°/s, Non-linearity: 0.1%FS Bandwidth: 50Hz, Noise density: 0.02°/s/√Hz Higher accuracy gyro module available
	F5	Vibration module	Three-axis vibration detection, frequency response ≤ 5 kHz Range: 0g~±1g/ ±5g/ ±10g/ ±20g, adjustable Sampling (real-time): 20.48 kSPS Filter programmable, 11 pcs set points FFT, 512-point, real valued, all three-axis (x, y, z) Storage: 14 FFT records on all three-axis (x, y, z) Alarm programmable, 6 spectrums
Temperature drift	D1	Temperature drift	Temperature compensation range 0~60℃, accuracy ±0.01° @ ≤ ±30°
	D2	Temperature drift	Temperature compensation range 0~60℃, accuracy ±0.01° @ > ±30°
	D3	Temperature drift	Temperature compensation range −20~60℃, accuracy ±0.02° @ ≤ ±30°
	D4	Temperature drift	Temperature compensation range −20~60℃, accuracy ±0.02° @ > ±30°
	D5	Temperature drift	Temperature compensation range −30~60℃, accuracy ±0.03° @ ≤ ±30°
	D6	Temperature drift	Temperature compensation range −30~60℃, accuracy ±0.03° @ > ±30°
	D7	Temperature drift	Temperature compensation range −40~65℃, accuracy ±0.05° @ ≤ ±30°
	D8	Temperature drift	Temperature compensation range −40~65℃, accuracy ±0.05° @ > ±30°
	D9	Temperature drift	Temperature compensation range −40~85℃, accuracy ±0.05° @ ≤ ±30°
	D10	Temperature drift	Temperature compensation range −40~85℃, accuracy ±0.05° @ > ±30°

Table 4 Options
Item	P/N	Option name	Function
Monitor	SST003-04-08	Zigbee monitor	Built-in lithium battery with 8 hours supply, single/dual axis, sound/light alarm, alarm point can be set up, 200m distance
Network access facility	SST003-05-15	LAN/WAN converter	According to ITU-T G-703 protocol and 10Base-T, comply with ITU-T G-735 and ITU-T G-823 2.048 Mbps rate, 2 km distance, 1500 V isolation Ethernet port rate 10/100 Mbps, full/half-duplex, support VLAN MAC address filter: built-in 10,000 MAC ID
	SST003-05-19	Zigbee-USB converter	USB interface, hot-plug & port power supply Online configuration, sleep mode support 128-bit AES wireless data encryption Support 65,536 nodes Compatible IEEE 802.15.4/ZigBee protocol 2.4 GHz ISM and 780M WPAN range With 2 dBi antenna, visual distance 300–1000 m Support point-to-point, star, tree and Mesh networks
	SST003-05-20	Zigbee wireless gateway	Visual distance 2000 m; Web management, easy-to-use Support star, tree, chain and MESH network; up to 4-channel ZigBee Provide RS232, wired Ethernet, Wi-Fi and GPRS access Own RTC, auto-sync; CSMA-CA/address filtering/frame retransmission/confirm Safety certification, AES128 data encryption
Power	SST003-09-02	Portable battery packs	Output 24VDC, continuous work 24 hours, IP65, rechargeable
Power	SST003-09-03	Complementary power combined with solar and wind energy	Solar and wind energy, day & night working Wind input power 0.6 kW; solar input power 0.3 kW Battery rated voltage 24 V; AC output 1 kW @ 220 VAC DC output: 24 VDC @ 1 A
Installation	SST003-01-01	Magnetic base	50 kg suction, permanent magnet, stainless steel materials
Installation	SST003-01-04	Adjustable base with micrometer screw	Three points adjustment, resolution 0.001 mm, stainless steel material
